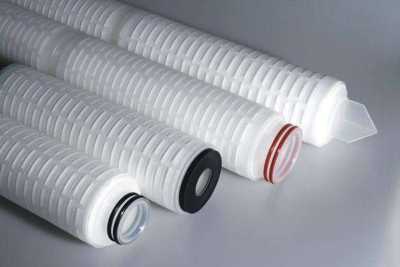

Membrane Pleated Filter Cartridge

Membrane Pleated Filter Cartridge

Membrane Pleated Filter Cartridge delivers high efficiency and consistent filtration of fluids in a wide range of critical applications. They are constructed of pleated melt blown filter media that provides removal of particles from 0.1 to 50μm. The high surface area ensures long service life and low initial pressure drops. All cartridge hardware components are high purity polypropylene materials for use in critical process applications. These cartridges are manufactured and assembled in a clean room environment to minimize the possibility of contamination. They are available in a wide range of configurations to fit most commercially available filter housings.

Specification

Dimensions: Outside diameter: 64mm,66mm,69mm
Inside Diameter: 28mm, 32mm
Length: 10", 20", 30", 40", 50", 60", 70"
Filter Media: PP, PES, Nylon
End Cap Material: PP
Center Core: PP
Seal Material: Silicone, EPDM, NBR, Viton
End Cap Types: DOE, 222 / Flat End, 222/with Fin, 226/Flat End, 226/with Fin
Removal Rating: 0.1μm, 0.22μm, 0.45μm, 1 μm, 2μm, 5μm, 10μm, 20μm, 50μm
Differential Pressure : The optimum change out differential pressure is 35psi (2.5Bar) up to 52°C Pressures up to 60 Psl (4Bar) at ambient temperature
Service condition: 500KPa(5Bar)by 20°C - 300KPa (3Bar) by 65°C
Operating Pressure and temperature: The pleated cartridge construction will withstand differential
